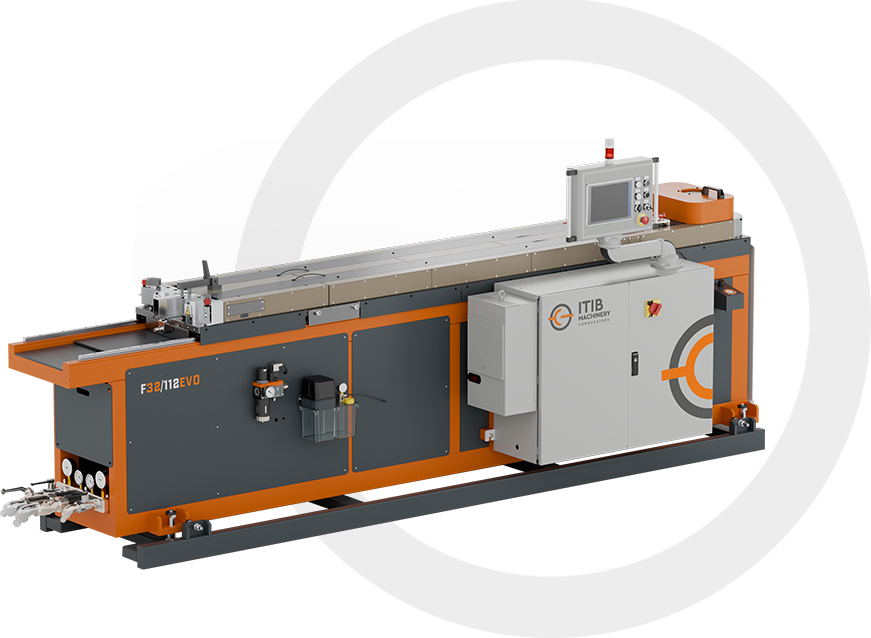

Updated version of well-known model F32 for PP, PVC and PE pipes from 10mm I.D. up to 32mm O.D.

It has its main application in the production of electrical conduits for building.

The full range of F32 corrugators has been updated to an EVO version.

It combines some important new technical solutions to the classical and sturdy design of F32 range.

The upgrade has a positive impact on performance, ease of use and maintenance and consists in:

  • Main table moving on precise linear roller guides
  • Possibility to open the main gear support for better accessibility to the moulds closing area in case of jam
  • Transmission by gears in place of chain
  • Torque limiter on the gear-box shaft
  • Optimized water flow in the central and return channels for better heat transfer
  • Water cooled inlet and outlet curves
  • Independent cooling of the right/left mould chain with independent temperature set
  • Up/down, left/right sides adjustment for perfect centring
  • Automatic lubrication with timer
  • Emergency push back air piston
  • Safety protection for safe corrugator handling
  • Industry 4.0 ready
  • Vacuum forming is available as an option
